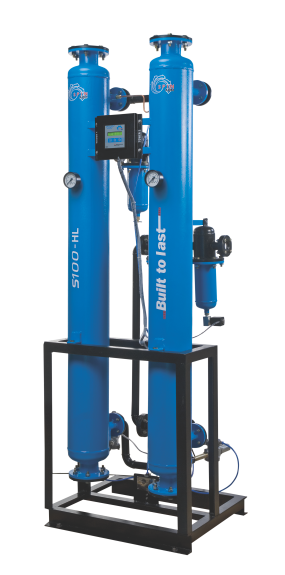

Dessicant Air Dryers

Refrigerated dryers can provide pressure dew point as low as 3⁰C. When lower dew points are required, the use of heatless dryers is warranted Typical applications of SPIN AQM make heatless dryers are

Pharmaceutical
Food & Beverage
Electronic component assembly
Medical gases
Systems handling hygrosphic material
Pneumatic instrumentation

Salient Features

Low Pressure Drop

Digital display showing detialed function of the dryer
Purge economizer as standard feature
Rugged construction
Stainless Steel NRV
All flanged construction for the ease of service
Short boy design
Elegant powder coated dual color finish
Separate fill and drain of dryer ports,ease of dessicant replacement
Limited velocities through tower prevents bed fludization,stops dessicant dusting
Sturdy box frame

DPSC (DEW POINT BASED SWING CONTROL)

Dew point based swing control is the unique feature,reducing purge losses when you are monitoring the dew point.
The maximum power can be saved during partial loads.
SPIN AQM is the first indian company introduced this option in our dryers

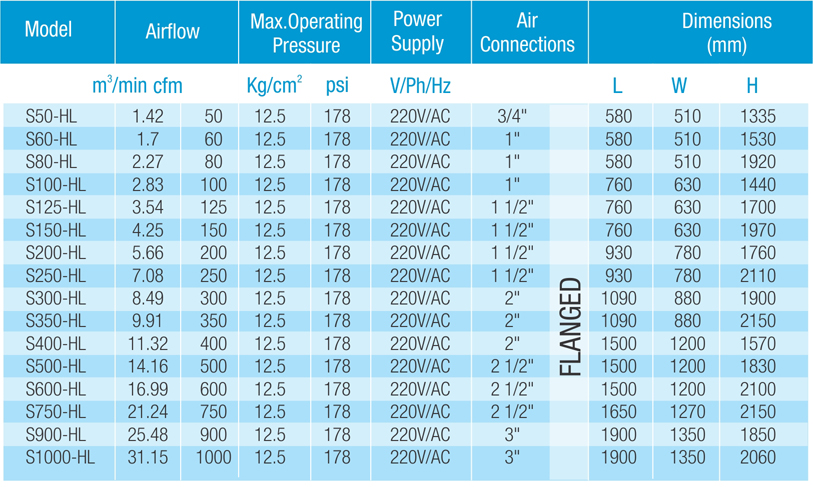

Technical Specification

tech_spec

* Pressure dew point -40⁰C
** Inlet temperature up to 45⁰C
*** Unique DPSC (Dew Point based Swing Control) option is available for the dryers from 300 cfm & above
