Air Filters

products Purification of compressed air is needed because the air we breathe carries contaminants. Airborne particles, water, microbes, and chemical gases enter compressors. At a compressed state these contaminants become concentrated and more destructive.In the compressed air system, hard particles assault equipment and piping. The result is damage to the system and more particles generated. Examples of particles found in a compressed air system include desiccant dust, rust, pipe scale, metal oxides, and dirt. By applying proper filtration system the above can be eliminated.

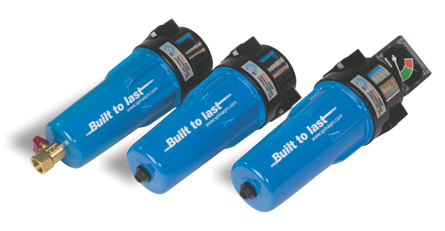

Air Filter - Regular

SPIN AQM manufactures Regular Air Filters with capacity from 0.99 to 22 cfm and these filters can be used for a variety of applications.These filters comes with different grades of elements which is to be selected in combination based on the quality of air required.

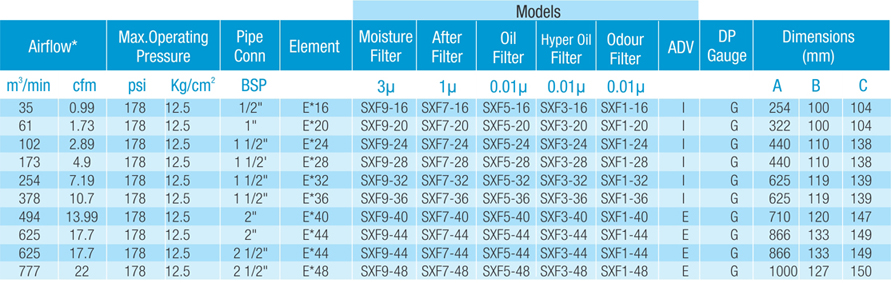

Technical Specifications

Note: Due to continuous engineering improvements, technical specifications are subject to change without prior notice.
* The flow rating is based on 7 bar operating pressure. Lower the pressure the flow rating will be low as proportionate
** Normal filter Assembly comes with manual drain and without Delta P indicator
*** While ordering, include accessory codes along with filter model. The accessory codes are:
I - Internal automatic drain
E - External automatic drain
G - Delta P Indicator

Salient Features

  • replaceable filter elements
  • Easy replacement of elements
  • Elements are interchangeable between grades
  • Pressure die cast aluminium housing
  • Total powder coated dual colour body


Air Accessories

DELTA P Indicator
Indicates filter element replacement and ensures economical operation


Internal Automatic Drain
(Optional: up to 378 cfm)
In-Built, Float type, reliably discharges collected condensate dryers.


External Automatic Drain
(Optional: 494 cfm and above)
Float type , reliably discharges collected condensate without any air loss

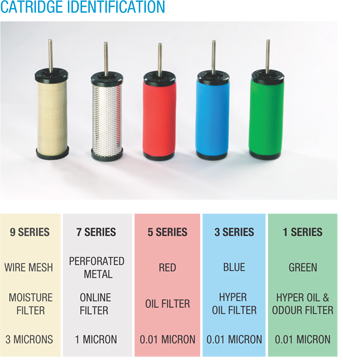

Color coded Elements
Filter Elements are colour coded for easy identification. They are designed using the latest media and manufacturing technology

Air Filters - High Volume

Application
High volume filters are used in huge plants where heavy volume of compressed air is used. These filters comes with different grades of elements which is to be selected in combination based on the quality of air required.

Technical Specifications * The flow rating is based on 7 bar operating pressure. Lower the pressure the flow rating will be low as proportionate
** ADV & DP gauge are additional accessories

Salient Features

  • Replaceble filter elements
  • Easy replacement of elements
  • Elements are interchangeble between grades
  • Total powder coated, dual color body
  • Hydraulic testing of each filters
  • O ring seating on flanges for 100% leak proof assembly
  • Counter flanges supplied with each filter



Air Filters - High pressure

Application
SPIN AQM makes high pressure air filters of pressure range up to 40 bar.

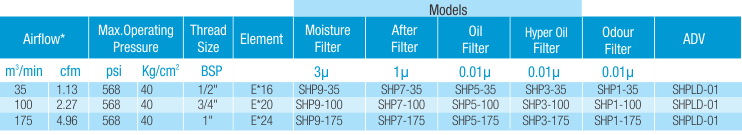

Technical Specifications

Note: The filters are fabricated and powder coated ADV (Optional)- Timer based, electrically operated Higher volume, high pressure filters are available on request

Salient Features

  • Replaceble filter elements
  • Easy replacement of elements
  • Elements are interchangeble between grades
  • Total powder coated, dual color body
  • Hydraulic testing of each filters
  • O ring seating on flanges for 100% leak proof assembly
  • Counter flanges supplied with each filter
